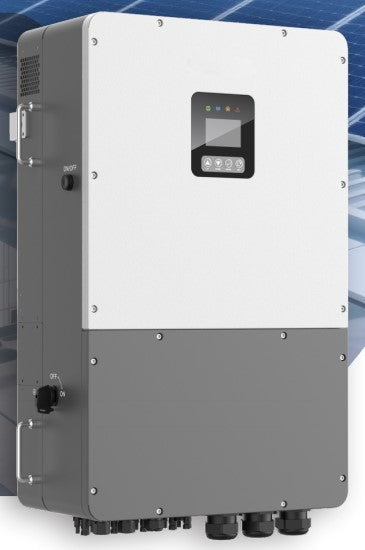

SSE-HH30~60K-P3US Series

The SSE-HH30~60K-P3US Series is a high-performance, three-phase hybrid inverter designed for North American commercial and industrial applications.

It features 4 MPPTs (Maximum Power Point Trackers), dual battery ports, and is compatible with both 120/208V and 277/480V US grids.

The inverter supports seamless on/off-grid operation and is built for all-weather reliability with an IP66 protection rating.

• Wide Grid Compatibility: Works with both 120/208V and 277/480V grids, making it suitable for a variety of commercial and industrial setups.
• Dual Battery Ports: Two 100A ports allow for flexible energy storage and higher total output.
• High Efficiency: Uses advanced SiC (Silicon Carbide) technology for improved conversion efficiency.
• All-Weather Ready: IP66 rating ensures durability in harsh outdoor environments.
• Seamless On/Off-Grid Operation: Supports grid-tied, off-grid, and generator backup modes.
• Scalable & Smart: Supports parallel operation (up to 8 units) and smart energy control for system expansion.
• Rated Power: 30kW or 60kW models available.
• MPPTs: 4 independent trackers for optimal solar harvesting.
• Battery Voltage Range: 150–800V DC, supporting both lithium and lead-acid batteries.
• Max. PV Array Power: Up to 100kW (for 60kW model).
• Efficiency: Max efficiency of 98%, MPPT efficiency of 99.9%.
• Protection: Includes insulation monitoring, residual current detection, ground fault monitoring, and more.
• Certifications: UL1741, IEEE1547, CA Rule 21, HECO SRD V2.0, and others for North American compliance.
• Operating Range: -25°C to +60°C, up to 4000m altitude (with derating above 2000m).
