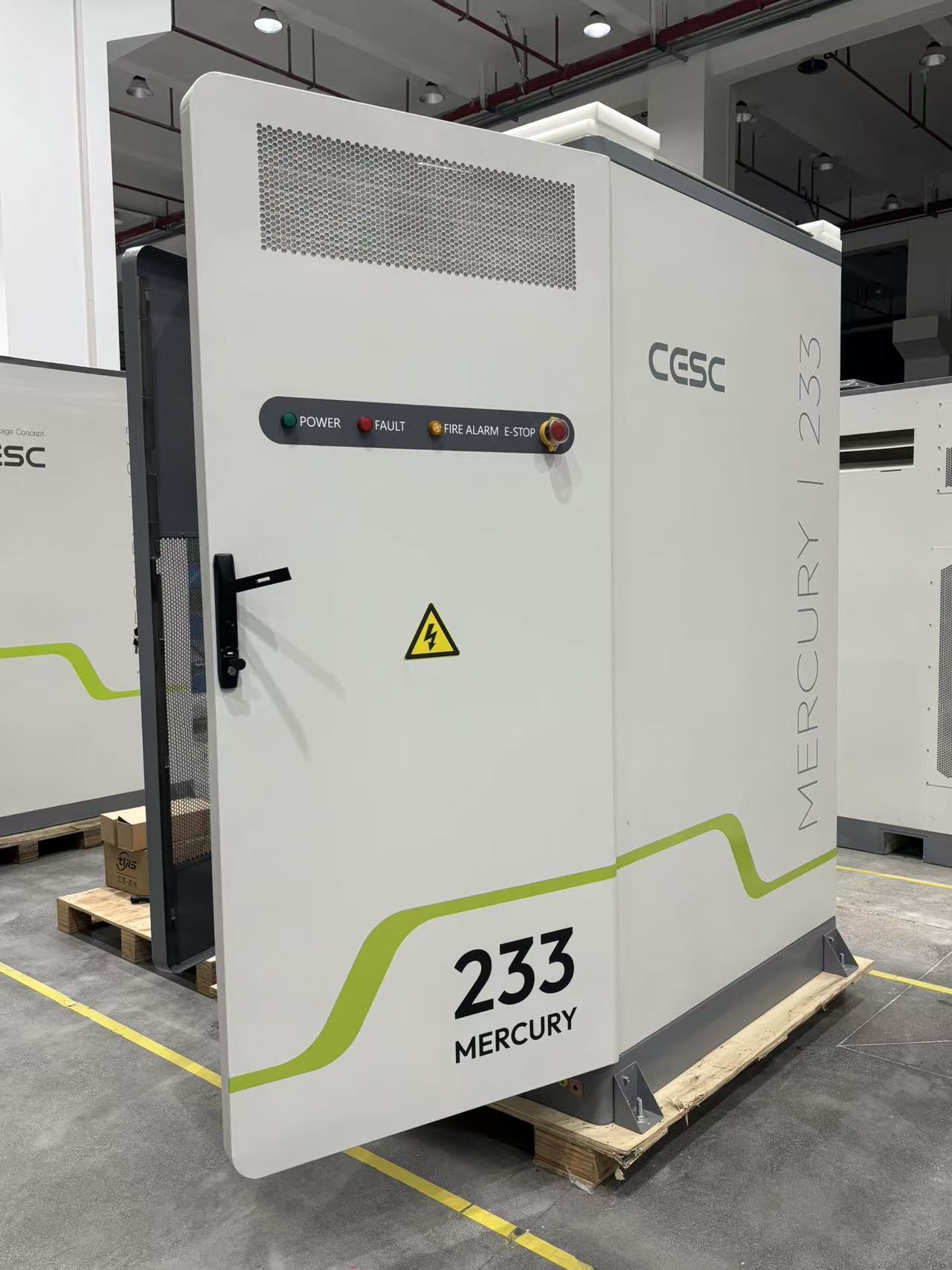

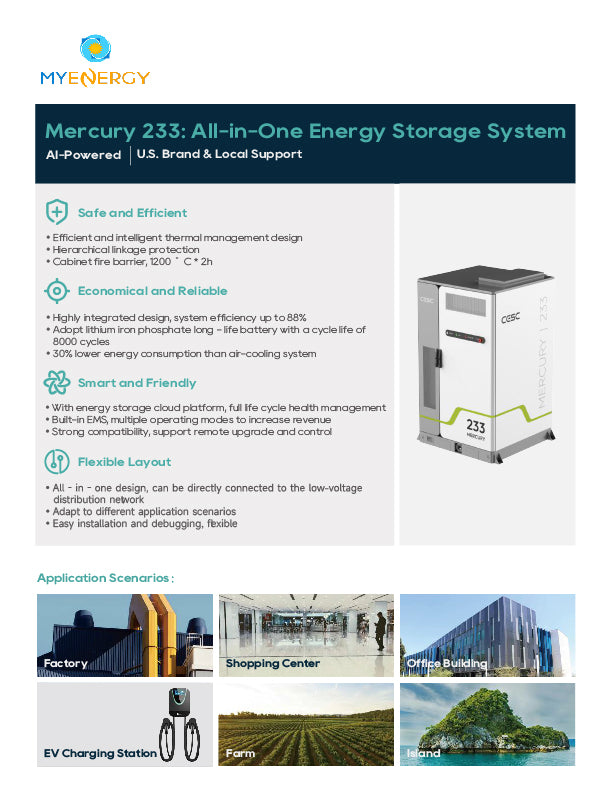

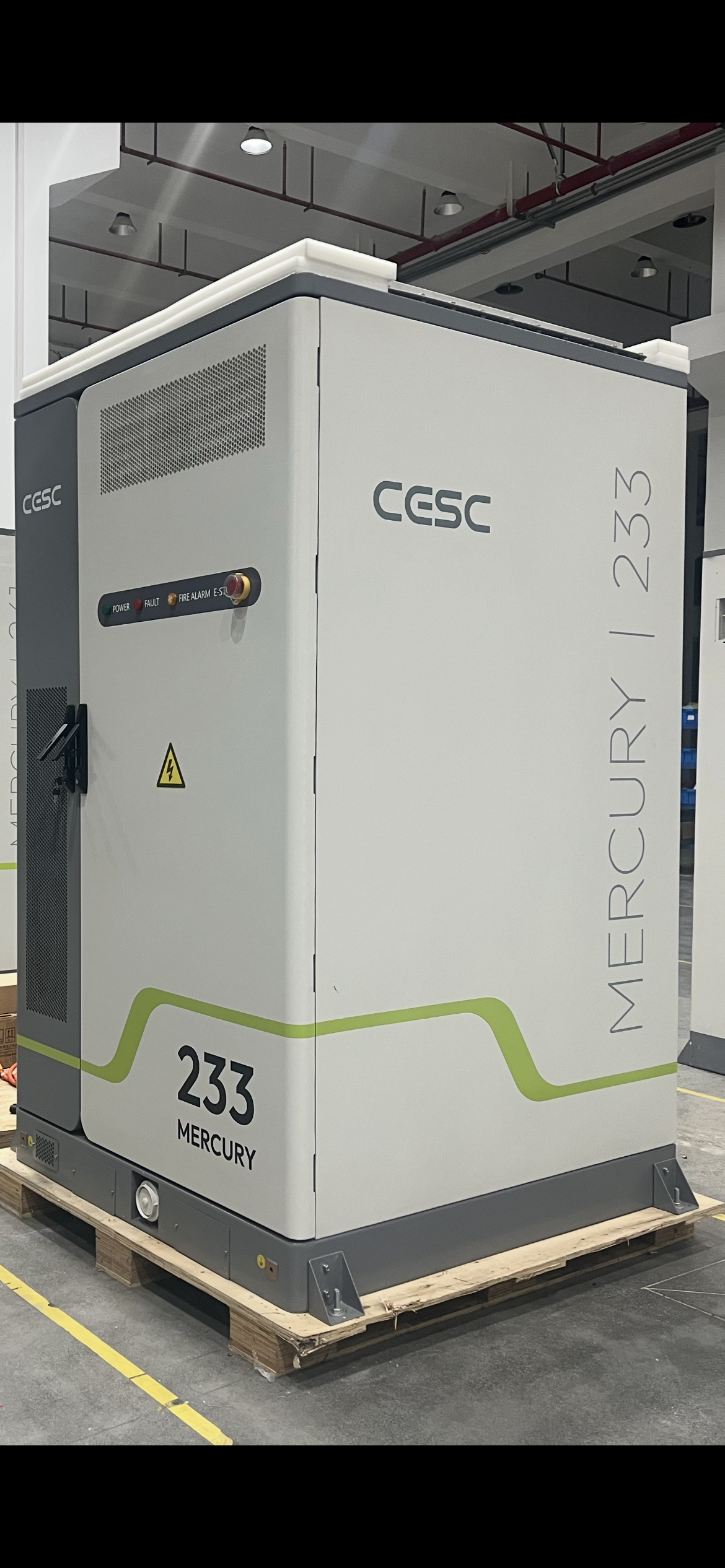

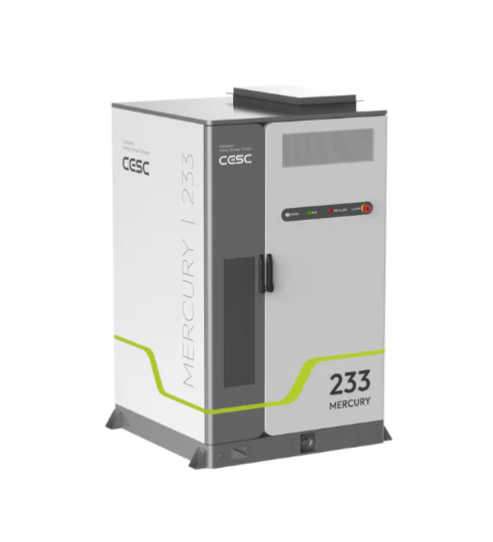

Mercury 233 | 125kW / 233kWh All-in-One Commercial Battery Energy Storage System (BESS)

Mercury 233kWh All-in-One Commercial Battery Energy Storage System (BESS)

• The Mercury 233 is a 125kW / 233kWh all-in-one commercial energy storage system built on LiFePO4 chemistry with 8,000-cycle longevity and UL-certified safety. Designed for businesses, farms, EV charging stations, and off-grid installations across North America.

Why the Mercury 233?

• Most commercial battery systems require separate inverters, BMS controllers, fire suppression, and cooling, each from different vendors, each with its own warranty headache. The Mercury 233 ships as a single integrated cabinet: battery, PCS, liquid cooling, fire suppression, EMS, and cloud monitoring, all factory-tested and ready to connect to your 480V distribution panel.

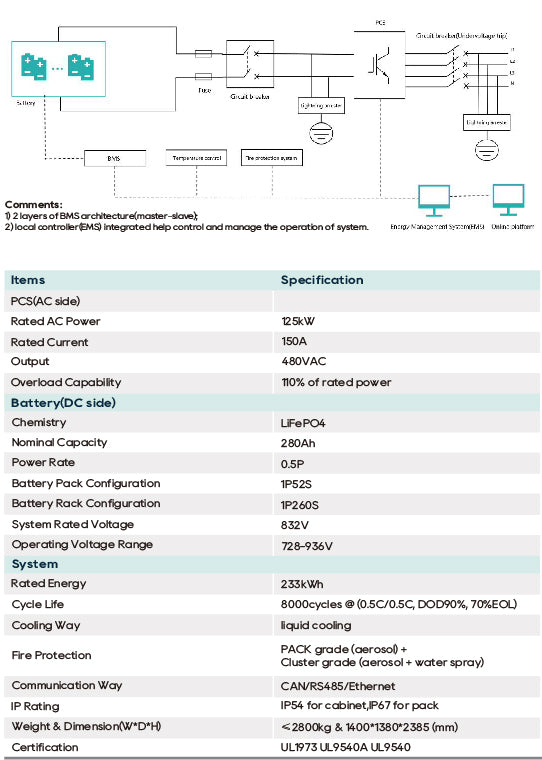

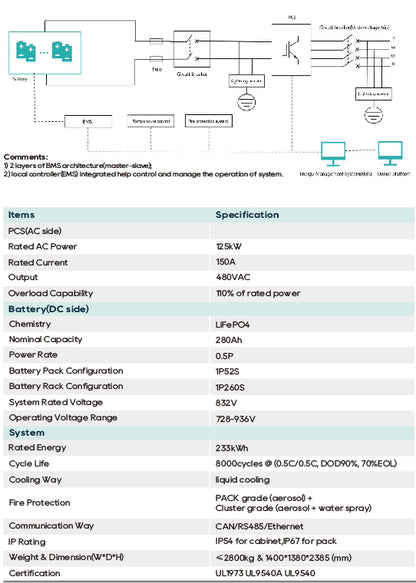

• Key Specifications
• Rated Energy: 233 kWh
• Rated AC Power: 125 kW
• Output Voltage: 480 VAC (3-phase)
• Rated Current: 150A
• Overload Capability: 110% of rated power
• Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Cycle Life: 8,000 cycles (0.5C/0.5C, 90% DOD, 70% EOL)
• System Efficiency: Up to 88% round-trip
• Cooling: Liquid cooling (30% lower consumption vs. air-cooled)
• Fire Protection: Dual-layer: Pack-grade aerosol + Cluster-grade aerosol & water spray
• Fire Barrier Rating: 1,200°C for 2 hours
• IP Rating: IP54 (cabinet) / IP67 (battery packs)
• Communication: CAN / RS485 / Ethernet
• BMS Architecture: 2-layer master-slave
• EMS: Built-in, multiple revenue modes
• Cloud Platform: Full life-cycle health monitoring, remote upgrade & control
• Dimensions (W x D x H): 1,400 x 1,380 x 2,385 mm
• Weight: ≤ 2,800 kg
• Certification: UL 1973, UL 9540A, UL 9540


Application Scenarios

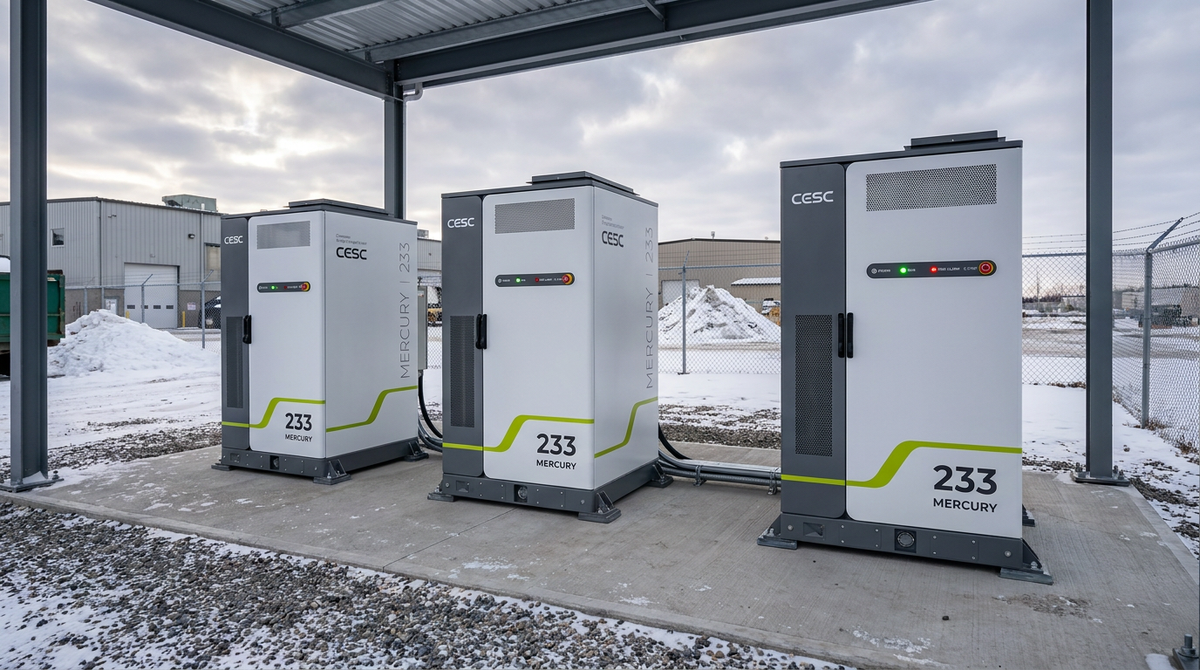

• Factories and warehouses, shopping centers, office buildings, EV charging stations, solar carports, agricultural operations, and island/off-grid microgrids.


What's Included

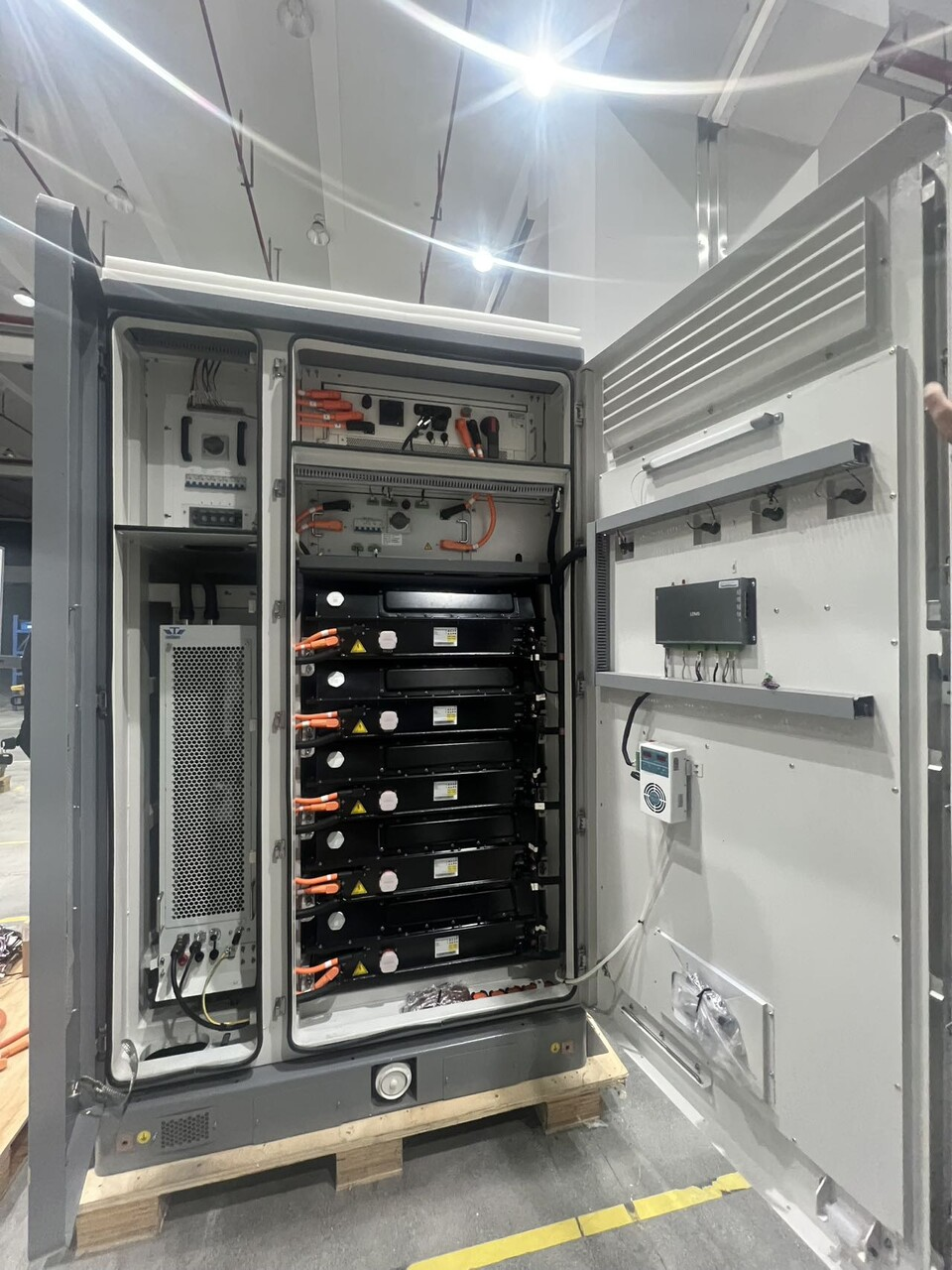

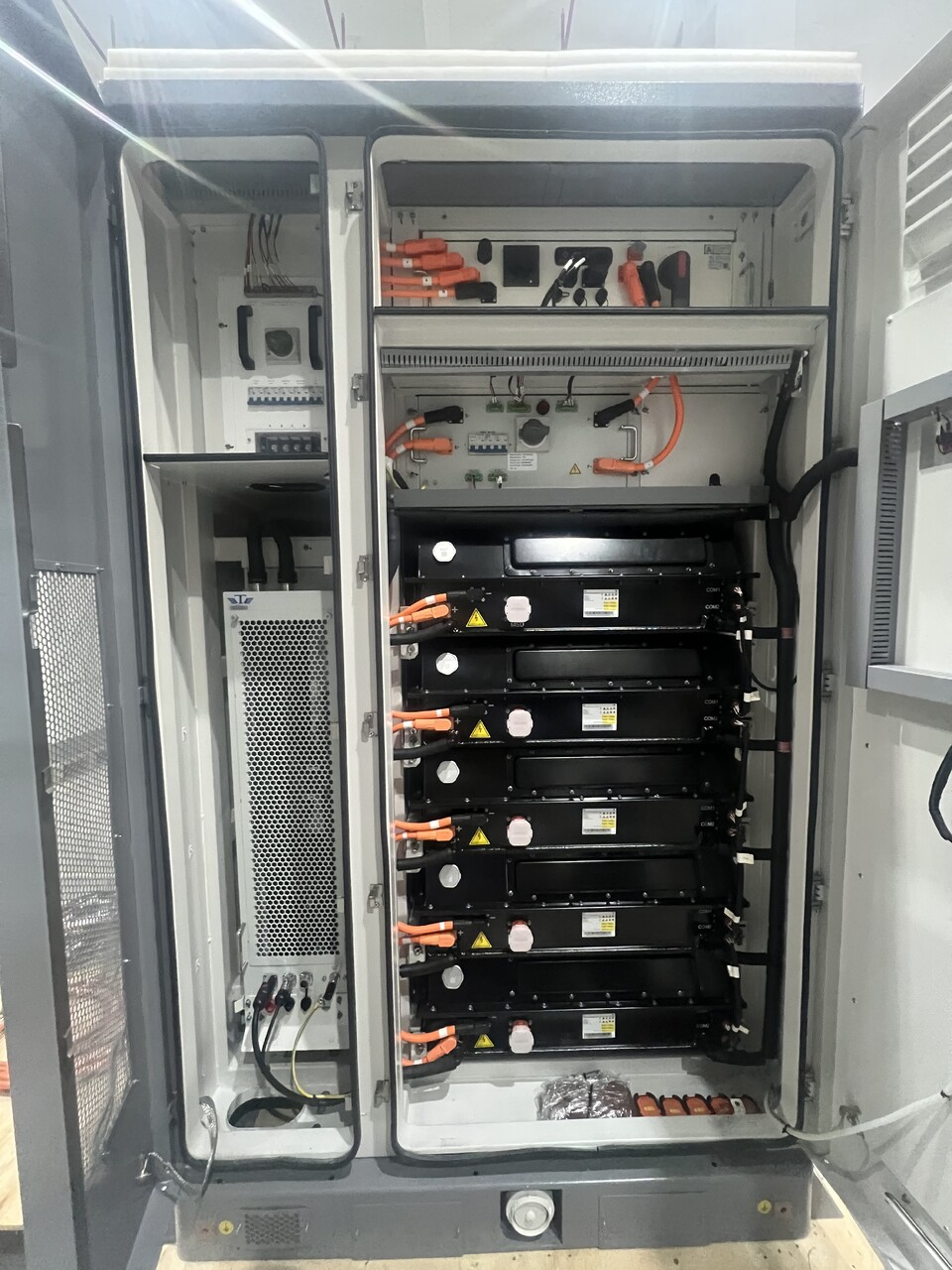

• All-in-one cabinet with integrated PCS (power conversion system), LiFePO4 battery rack, liquid thermal management, dual-layer fire suppression, BMS, local EMS controller, and cloud monitoring access. Connects directly to low-voltage distribution network. No external inverter required.


Pricing & Incentives by Region

• List Price: $84,999 USD (includes freight to port, continental North America)
• Volume/fleet pricing available: contact us

• 🇨🇦 Canada: Eligible for the 30% Clean Technology Investment Tax Credit (ITC), reducing your effective cost to approximately $59,500. Also qualifies for Class 43.2 Capital Cost Allowance (100% first-year depreciation). A $84,999 system could yield over $40,000 in Year 1 tax recovery.
• 🇺🇸 United States: May qualify for the 30% Investment Tax Credit under IRA Section 48E for standalone energy storage. Effective cost as low as $59,500 before state-level incentives. Additional 10% bonus for domestic content or energy community siting may apply.
• 🇧🇸 Caribbean / Off-Grid: Ideal for island microgrids and facilities with no net metering. At $0.35-0.45/kWh grid rates, payback period is typically 4-6 years with full self-consumption.

Why Buy From My Energy?

• U.S. brand with North American support
• Transparent pricing (no quote games)
• AI-powered system monitoring and diagnostics
• Direct-to-site shipping, MOQ of 1 unit
• Commissioning support available

Technical Support & Volume Pricing

• Need help sizing your system or purchasing multiple units? Contact us for engineering consultation and fleet discounts.
